The Role of Anilox Rolls in Flexographic Printing

Introduction

Anilox rolls are a critical component in the flexographic printing process, playing a vital role in ink transfer and print quality. This article explores the function of anilox rolls, their design and specifications, maintenance, and how they impact the overall printing process.

Function of Anilox Rolls

• Ink Metering

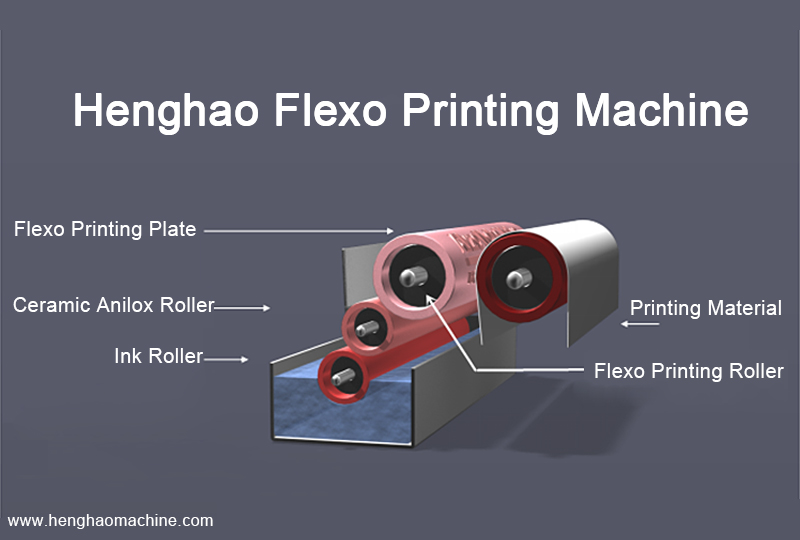

The primary function of anilox rolls is to meter a precise amount of flexographic ink and transfer it to the printing plate. This ensures consistent ink coverage and color density across the printed substrate.

• Ink Transfer

Anilox rolls have a surface covered with microscopic cells or pockets that hold and release ink. The size, shape, and depth of these cells determine the volume of ink transferred to the plate, impacting the print quality.

Design and Specifications

• Cell Volume and Count

The cell volume and count are crucial specifications of anilox rolls. Cell volume, measured in billion cubic microns (BCM), indicates the amount of ink a cell can hold. Cell count, measured in lines per inch (LPI), refers to the number of cells per linear inch. Higher LPI rolls have smaller cells, suitable for fine detail printing, while lower LPI rolls have larger cells, ideal for heavy ink coverage.

• Cell Geometry

The shape of the cells can vary, with common geometries including hexagonal, tri-helical, and quadrangular cells. Hexagonal cells are most common due to their uniformity and efficiency in ink release. Tri-helical cells provide smoother ink distribution, while quadrangular cells are used for specific applications requiring high ink volume.

• Engraving Methods

Anilox rolls are engraved using various methods, such as mechanical engraving, laser engraving, and electron beam engraving. Laser engraving is the most advanced and precise method, allowing for high-resolution cell patterns and consistent quality.

Maintenance and Care

• Cleaning

Regular cleaning of anilox rolls is essential to maintain print quality and extend the roll's lifespan. Proper cleaning removes dried ink and debris that can clog the cells and affect ink transfer. Cleaning methods include manual cleaning, ultrasonic cleaning, and chemical cleaning.

• Inspection and Monitoring

Routine inspection and monitoring of anilox rolls help identify wear and damage early. Using magnification tools and microscopes, operators can check for cell damage, plugging, and surface wear. Regular monitoring ensures timely maintenance and replacement.

• Storage

Proper storage of anilox rolls is crucial to prevent damage. Rolls should be stored in a clean, dry environment, protected from dust and physical impact. Using protective covers and stands can help maintain their condition.

Impact on Print Quality

• Color Consistency

Anilox rolls play a significant role in maintaining color consistency throughout a print run. Consistent ink metering ensures uniform color density and reduces variations in print quality.

• Detail and Resolution

The cell count and geometry of anilox rolls affect the level of detail and resolution in the printed image. High LPI rolls with smaller cells are ideal for fine details and high-resolution prints, while lower LPI rolls with larger cells are better for solid areas and heavy ink coverage.

• Ink Coverage

Properly maintained anilox rolls ensure even ink coverage, preventing issues like streaking, mottling, and uneven color. This is particularly important for large solid areas and background colors.

Case Studies

• Packaging Printing

A packaging company improved print quality and reduced waste by upgrading their anilox rolls to higher LPI and better-maintained rolls. The change resulted in more consistent color and finer details in their packaging designs.

• Label Printing

A label flexo printing machine faced issues with inconsistent color and ink coverage. After implementing a regular cleaning and maintenance routine for their anilox rolls, they saw a significant improvement in print quality and reduced downtime.

• Flexible Packaging

A flexible packaging manufacturer achieved better ink laydown and smoother gradients by switching to anilox rolls with tri-helical cells. The new rolls provided more uniform ink distribution, enhancing the overall print appearance.

Technological Advancements

• High-Definition Anilox Rolls

Advances in engraving technology have led to the development of high-definition anilox rolls. These rolls feature precise, high-resolution cell patterns that improve ink transfer and print quality.

• Coatings and Treatments

Innovative coatings and treatments for anilox rolls enhance their durability and performance. Ceramic coatings, for example, provide increased wear resistance and longer roll life.

• Digital Monitoring

Digital monitoring systems for anilox rolls track their condition in real-time, providing data on cell volume, wear, and cleanliness. These systems help operators maintain optimal roll performance and predict maintenance needs.

Anilox rolls are a fundamental component in the flexographic printing machine printing process, directly influencing ink transfer and print quality. Understanding their function, design, and maintenance is crucial for achieving consistent, high-quality prints. As technology advances, the development of high-definition anilox rolls and improved monitoring systems will continue to enhance the capabilities and efficiency of flexographic printing. Investing in quality anilox rolls and proper maintenance practices ensures reliable performance and superior print results.
